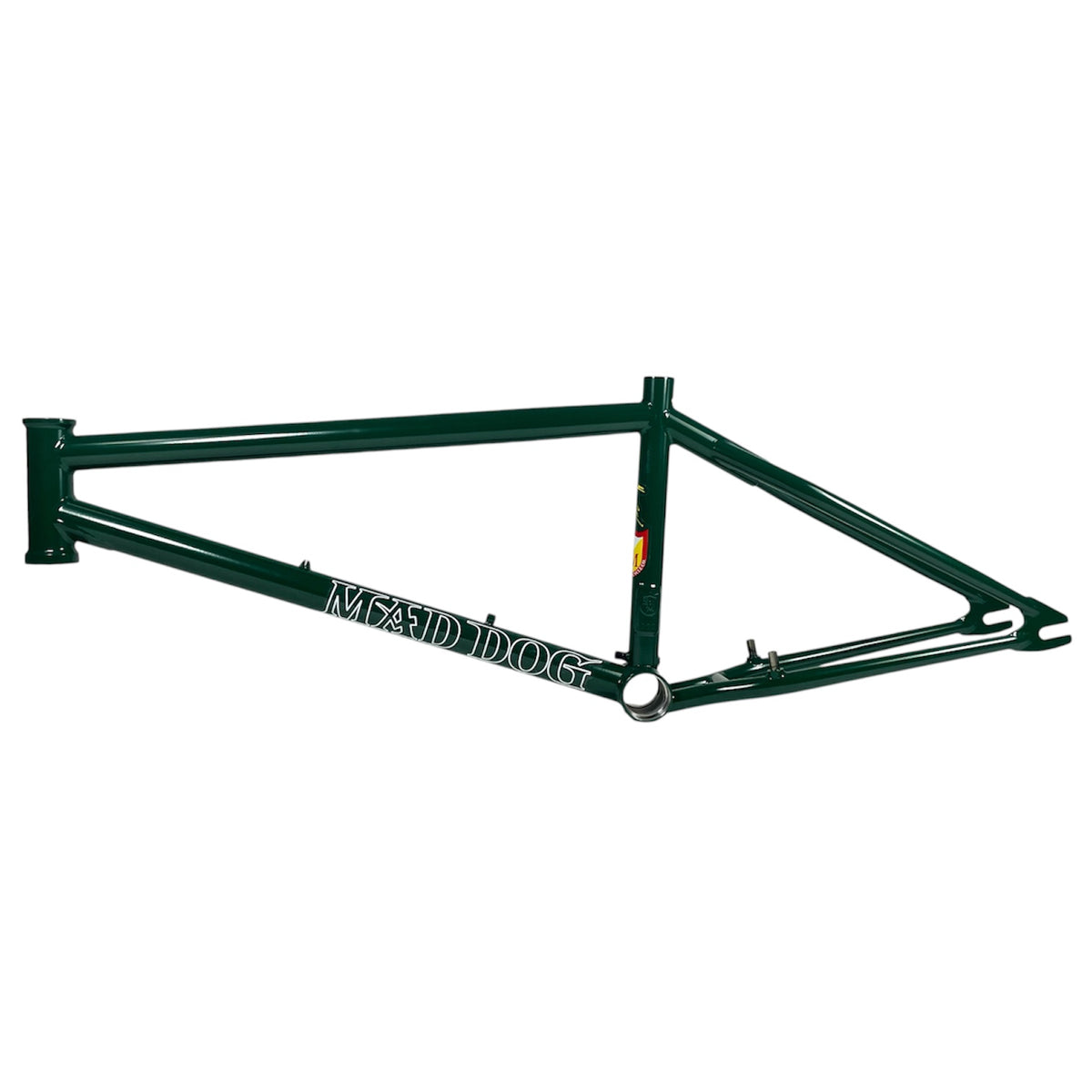

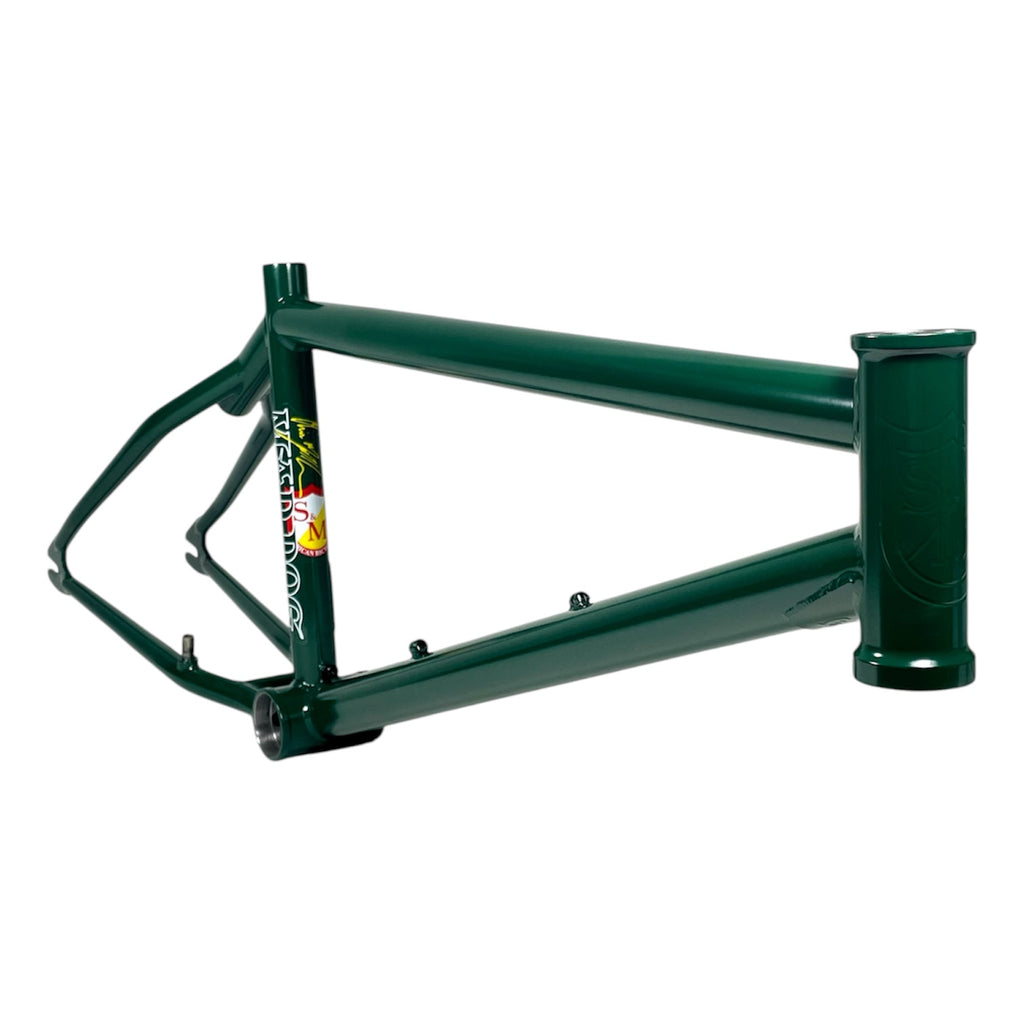

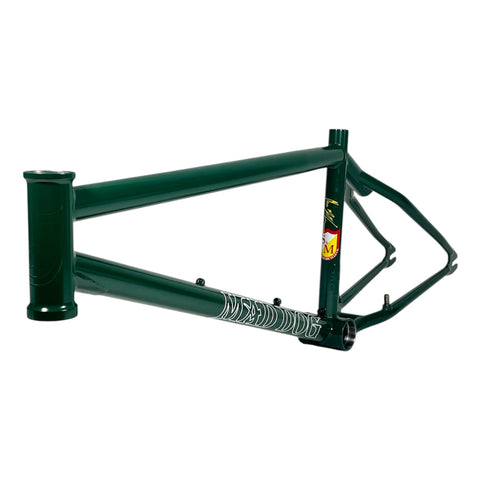

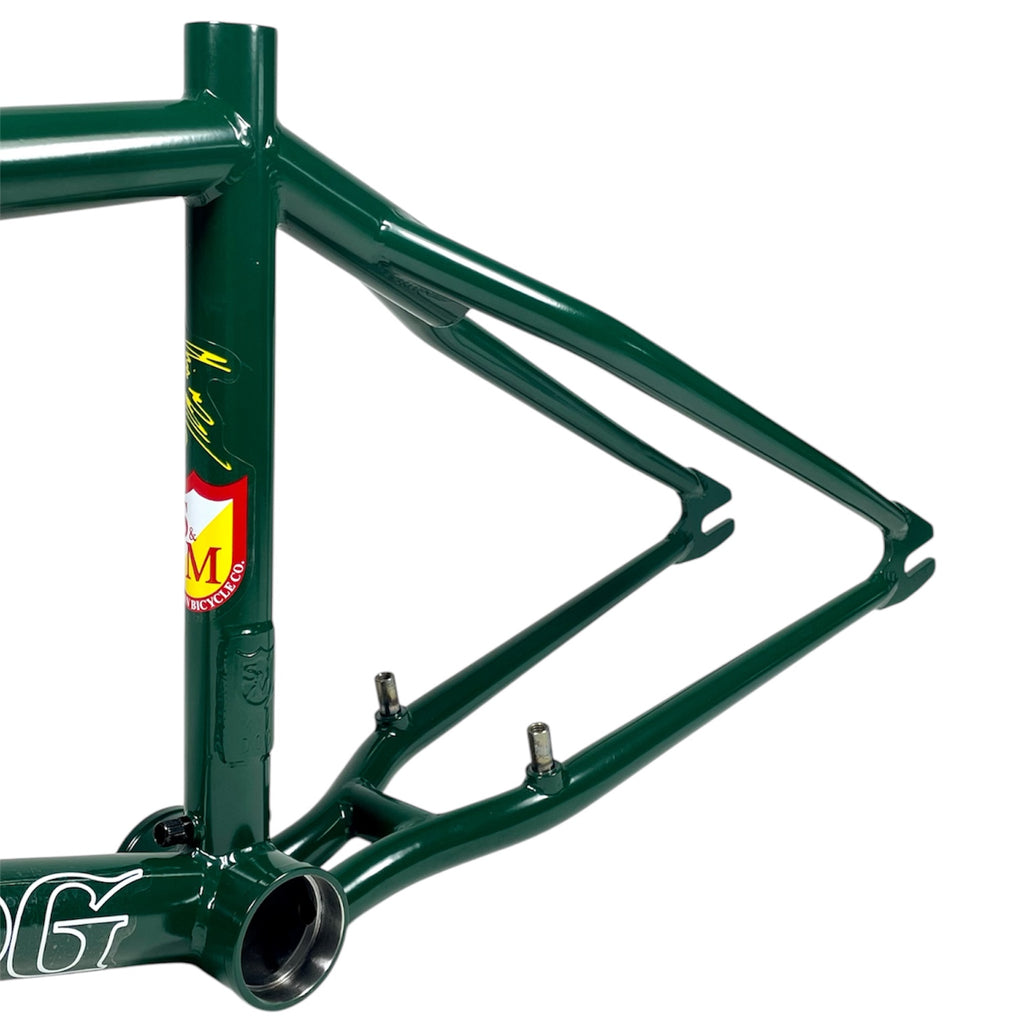

Throw a dog a wishbone chain-stay 990 mounts and a tall stand-over but keep it light (sub 5lbs) and youve got yourself the reincarnated Chris "Mad Dog" Moeller frame. It only took 36 years for S&Ms Top Dawg to drop another bike custom-crafted for his breed of biking but much like the original its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.
- Engraved Shield on Headtube. Engraved 87 on BB shell. MAD DOG-tag on seat-tube
- Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm and accepts 3/8" axle.
- TOP TUBE LENGTHS: 20.5" 21" 21.25" 21.5" 21.75" 22"
- REAR END LENGTH: 13.9"
- HEAD TUBE ANGLE: 74.25°
- STANDOVER HEIGHT: 10"
- B.B. HEIGHT: 11.6"
- SEAT TUBE ANGLE: 71°
- HEAD TUBE: 5" Tall Integrated Campy Style
- B.B. STYLE: Mid
- BRAKE MOUNTS: Chain-stay 990
- DROPOUTS: 3/8"
- SEAT POST SIZE: 1" / 25.4mm
